ND-BU003 Passive Anti-Drone System offers an affordable price with an adequate detection range, making it the basic version of our anti-drone product line. Its key advantage is shown in a short production cycle, enabling high-volume and high-quality manufacturing.
The system is primarily composed of a Detecting Unit (RF Detector / Drone Detector) and a Jamming Unit (Directional Jammer). The Detecting Unit can detect and track drones at long distances, guiding the Jamming Unit to jam their remote-control circuits and navigation signals, which force the intruding drones to land or return to their origin points.
The system uses an advanced drone detector, a passive radar that provides 360-degree detection coverage. Since the passive radar does not emit electromagnetic waves, its detection operation is concealed and is not susceptible to interference. Precise directional tracking of intruding drones and comprehensive low-altitude 3D protection can be achieved by deploying a network of multi-point RF/drone detectors.
Main Features of Detecting Unit
- Precise stereo protection and direction measurement
- Integrated functionality with reverse positioning capabilities
- Omni-directional passive reception with no electromagnetic radiation
- Extensive drone signature database with real-time data update mechanism
Main Features of Jamming Unit
- Precise and non-destructive jamming
- Jamming signals across six frequency bands (with customizable frequency ranges and output power)
- Supports automatic and manual mode switching
- Remote control frequency jamming covers all available civilian drones
- Directional high-gain antennas installed on a pan-tilt platform effectively track and transmit jamming signals to drones
- Frequency jamming can be initiated automatically upon drone detection or manually with supervisor assistance

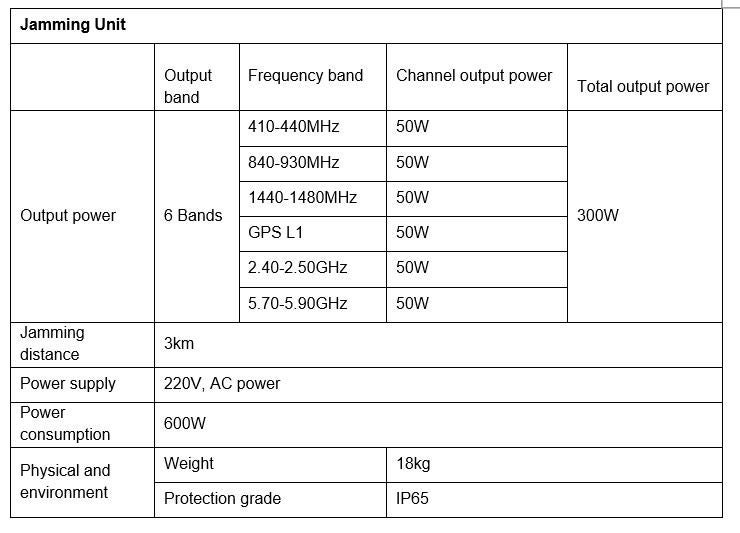

Specification
