RF Booster Amplifiers for the Defense Industry

AR Modular RF designs and builds booster amplifiers that dramatically extend and improve the coverage of military radios.



Address
21222 30th Dr. SE,
Building C, Suite 200,
Bothell, WA 98021,
Other,
United States of America
Phone
Fax Number
Share

AR Modular RF designs and manufactures Tactical Booster Amplifiers, RF Amplifier Modules and Rack Mount and Amplifier Systems that cover a wide frequency spectrum from 30 kHz to 3 GHz and offer diverse ranges of power from 10 Watts to 1000 Watts supporting legacy and emerging waveforms. Some of the most innovative, dependable, and durable RF Amplifier Modules and broadband solid-state RF amplifier systems in the world, these systems are used for tactical military communications, medical, scientific, and industrial applications.

From market pioneers to industry technology trailblazers we have always recognized the critical elements that drive the market: technological performance, dependability and time to market. We pride ourselves in developing plug and play products and turnkey solutions. Simply put, we consistently deliver and strive to exceed our customer expectations.

We are focused. Our primary focus is on RF amplifiers, boosting signals, and providing turnkey solutions to one of the most demanding customers in the world—the military. We work as a trusted partner to provide the most innovative solutions in the business. We look at the entire picture. We take a software savvy approach and balance size, weight, and power requirements to provide an optimal solution for both hardware and software defined solutions.

The Model AR-20 is a portable, lightweight, fully automatic band-switching RF booster amplifier for use with multi-band VHF/UHF Tactical Radio equipment employing legacy, proprietary and networking waveforms.
The Model AR-20 is a portable, lightweight, fully automatic band-switching RF booster amplifier for use with multi-band VHF/UHF Tactical Radio equipment employing legacy, proprietary and networking waveforms.
The Model AR-50 is a portable, lightweight, fully automatic band-switching RF booster amplifier for multi-band VHF/UHF Tactical Radio equipment employing legacy, proprietary and emerging waveforms.
The AR-50 Fan Kit (Model FK-AR-50) is an optional accessory for the AR-50 amplifier.
The Model AR-20B is a portable, lightweight, fully automatic band-switching RF booster amplifier for multi-band VHF/UHF Tactical Radio equipment employing legacy, proprietary and emerging waveforms.
The AR-50 Fan Kit (Model FK-AR-50) is an optional accessory for the AR-50 amplifier.
The Model AR-50SE is a fully automatic band-switching RF booster amplifier for multi-band Tactical Radio equipment employing legacy, proprietary and emerging waveforms.
The Model AR-75HPS is a portable, lightweight, fully automatic band-switching RF booster amplifier for multi-band VHF/UHF Tactical Radio equipment employing legacy, proprietary and emerging waveforms.
Designed for use with the AR-50 and AR-75 families of Tactical Booster Amplifiers, the AR-RBT (Remote Bias Tee) combines RF signals (Tx/Rx) and DC power onto a single coax cable.

Emerging Fast Switching MANET, MESH Networking, and legacy waveforms supported

Waveforms are evolving at a rapid pace to provide enhanced communication capabilities to the modern-day war fighter. AR Modular RF continues to support legacy waveforms such SINCGARS, HAVEQUICK, HAVEQUICK II, AM, FM, HPW, DAMA, IW, ANW2, SRW and new and emerging waveforms that support fast switching for MANET and MESH Network applications.  AR Modular RF amplifiers support the HF, VHF, and UHF frequency bands with new and emerging technologies that can and will support much more.

SATCOM, legacy, and MUOS waveforms

Satellite communication waveforms are providing enhanced communications (voice, video, data) capabilities to the modern-day war fighter. AR Modular RF continues to support legacy SATCOM waveforms, and the new Mobile User Object Network (MUOS) waveform.

Man-portable, man-pack and vehicle-mounted solutions

Man-portable, man-pack and vehicle-mounted models are available. Whichever you need, when you choose AR Modular RF you get booster amplifiers that keep on working through virtually every imaginable hazard.

AR Modular RF provides a full line of amplifiers that cover the broadest frequencies and waveforms. Many amplifiers incorporate RF auto-sensing circuits to switch from receive to transmit as needed. They include Automatic Level Control (ALC), appropriate low pass harmonic or band pass filters, protection against antenna mismatch (VSWR) and overheating. Several models have fully automatic band selection and are SINCGARS-compatible with high speed filter switching to protect other nearby communication networks; and they are fully compatible and manufacturer independent with most radio transceiver systems supporting multiple manufacturer’s tactical radios.

AR Modular RF booster amplifiers pass the toughest battle tests

It isn’t just experience, technological advances, or even the commitment of AR Modular RF that should inspire trust. Before AR Modular RF military booster amplifiers are offered for sale, they’re tested in real battle conditions to assure they will perform in the toughest environments.

These battle-tested booster amplifiers are lightweight and compact. Every model incorporates RF sensing circuits to switch from receive to transmit. They all include automatic level control, low pass harmonic or band pass filters, protection against antenna mismatch (VSWR) and overheating.

Robust booster design for harshest defense environments

No booster amplifiers are tougher, more dependable or more versatile. Most importantly, no booster amplifiers are as easier to use than the amplifiers made by AR. AR booster amplifiers ensure easy set-up with clean, and high-performance signals. They deliver high peak AM signals and low distortion with only small input signals. They continue to provide full power despite high VSWR conditions, such as when on the ground or up against a building. Their sophisticated DC power systems have full DC spike and surge protection. DC regulation keeps RF output constant even when the input voltage drops to low levels.

The bottom line is that they do the job and go the distance through shock, vibration, extreme temperatures, and even water. When troops have a need to go through hell and high water, these are the booster amplifiers that go with them.

Rack Mount Amplifiers and Systems with quick prototyping capability

AR Modular RF designs and manufactures Rack Mount and Amplifier Systems that cover a wide frequency spectrum and offer diverse ranges of power. Some of the most innovative, dependable, and durable RF Amplifier Modules and broadband solid-state RF amplifier systems in the world, these systems are used for communications, medical, scientific, and industrial applications.

The series of rack-mounted amplifiers enable rapid and inexpensive prototyping of custom solutions when tailored, application specific performance is required.  Designed for linear operation, AR Rack Mount Series amplifiers support the latest digital modulations and emerging technologies.  With features including maximum level control, automatic level control, Ethernet control, and gain control – all managed locally and remotely – ARM Rack Mount Series amplifiers ease system integration and get your products into production and delivered to market faster with proven technology.

White Papers

  • AR-5000 Series Application Note Product Overview

    This application note describes three power control features available on AR-5000 Series amplifiers: GC (Gain Control), MLC (Maximum Level Control) and ALC (Automatic Level Control). Each of the three power control features, although related, are independent of one another and each serve a unique function.

  • Leading Supplier of Booster Amplifiers for Tactical Military Radios

    Located in Bothell, WA, AR Modular RF manufactures and distributes RF amplifier modules and broadband solid-state RF amplifier systems that play a critical role in wireless and radio communications, military communications, electronic warfare, electronic countermeasures, and homeland security.

  • AR Amplifiers: Built For The Long Haul

    Located in Bothell, WA, AR Modular RF manufactures and distributes RF amplifier modules and broadband solid-state RF amplifier systems that play a critical role in wireless and radio communications, as well as military communications.

  • RF Model AR-50 Booster Amplifier

    The AR Modular RF Model AR-50 Booster Amplifier provides superior up and downlink performance for enhancing UHF Satellite communications. Properly setting up the Receive path will maximize the link quality and reliability.

Press Releases

Products & services

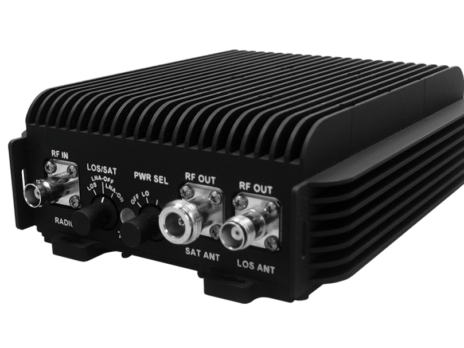

  • AR-50 Tactical Booster Amplifier

    The Model AR-50 is a portable, lightweight, fully automatic band-switching RF booster amplifier for multi-band VHF/UHF Tactical Radio equipment employing legacy, proprietary and emerging waveforms.

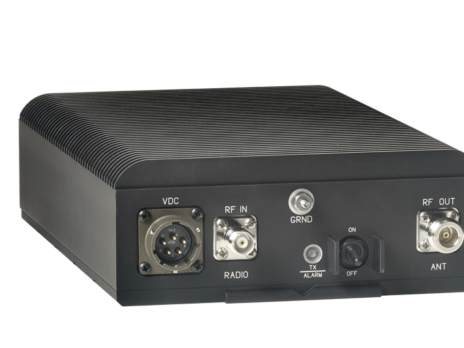

  • AR-50SE Booster Amplifier

    The Model AR-50SE is a fully automatic band-switching RF booster amplifier for multi-band Tactical Radio equipment employing legacy, proprietary and emerging waveforms.

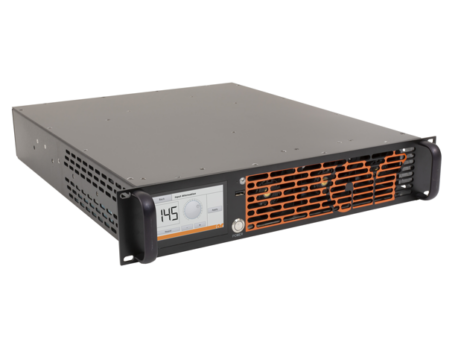

  • AR-5010 Rack Mount Amplifier

    AR Modular RF’s AR-5000 Series is the next generation of wideband, Class A/AB linear amplifier designed for use with modern digital modulations.

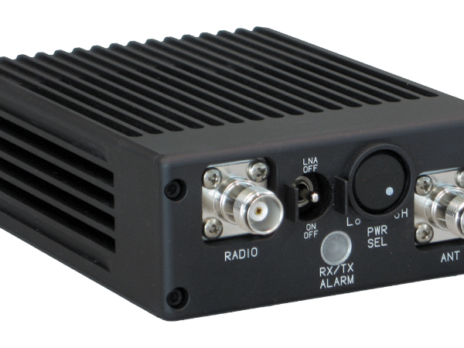

  • AR-20 Tactical Boost Amplifier

    The Model AR-20 is a portable, lightweight, fully automatic band-switching RF booster amplifier for use with multi-band VHF/UHF Tactical Radio equipment employing legacy, proprietary and networking waveforms.

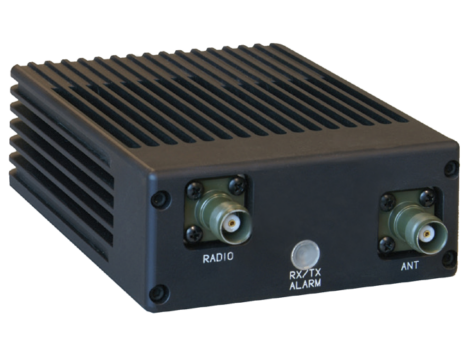

  • AR-20B RF Boost Amplifier

    The Model AR-20B is a portable, lightweight, fully automatic band-switching RF booster amplifier for use with multi-band VHF/UHF Tactical Radio equipment employing legacy, proprietary and networking waveforms.
